Acoustic System / SA-1000D
SA-1000D
High-Power Directional Acoustic System
A high-output directional acoustic system built for long-range warning, command and communication across marine and coastal operating environments.
Rated power1000 W RMS
SPL≥ 150 dB @ 1 m
Effective rangeUp to 5,000 m*
ProtectionIP56 / IP67*
*As stated in the supplied product sheet; environmental and configuration conditions apply.
Product Overview
Project the message. Control the space.
The SA-1000D is intended for long-range voice transmission, warning and command functions in applications such as patrol, maritime security, port operations, rescue, vessel communication and restricted-area protection.
High acoustic outputRated 1000 W RMS with ≥150 dB SPL at 1 m.
Long transmission rangeUp to 5,000 m in ideal environmental conditions.
Rotating coverage360° horizontal movement with defined vertical coverage.
Remote-control optionCabin control panel or remote operation.
Marine protectionIP56 / IP67 configurations shown in supplied literature.
Integration readyOptional audio and vessel-system inputs.
Technical Data
SA-1000D specifications
| Model | SA-1000D |
|---|---|
| Rated power (RMS) | 1000 W |
| Operating frequency range | 300 Hz – 8 kHz |
| Sound pressure level | ≥ 150 dB @ 1 m |
| Effective broadcast range | Up to 5,000 m under ideal environmental conditions |
| Coverage shown in supplied sheet | 360° horizontal × 30° vertical |
| Rotation speed | 0–20°/s, remote-control configuration |
| Control | Cabin control panel or remote control |
| Power supply | 220 VAC, 50/60 Hz; optional 24 VDC |
| Protection | IP56 / IP67, depending on marine design/configuration |
| Material | Marine aluminium alloy with anti-corrosion coating; stainless steel option |
| Dimensions | Ø600 × 520 mm, reference size |
| Weight | ≤ 85 kg, reference |
| Operating temperature | -30°C to +60°C |
| Humidity | 0–100% |
| Audio input | Analog / audio line-in, optional |
Integration
Designed to work as part of a vessel system.
GPS integrationOptional integration shown in supplied literature.
Compass integrationCan be specified with vessel heading reference.
VHF / communicationsIntegration options for ship communication systems.
Automatic alertsCan be connected to vessel alarm/automation functions depending on configuration.
Cabin panelFixed control panel option for operator use.
Remote joystickOptional remote-control interface.

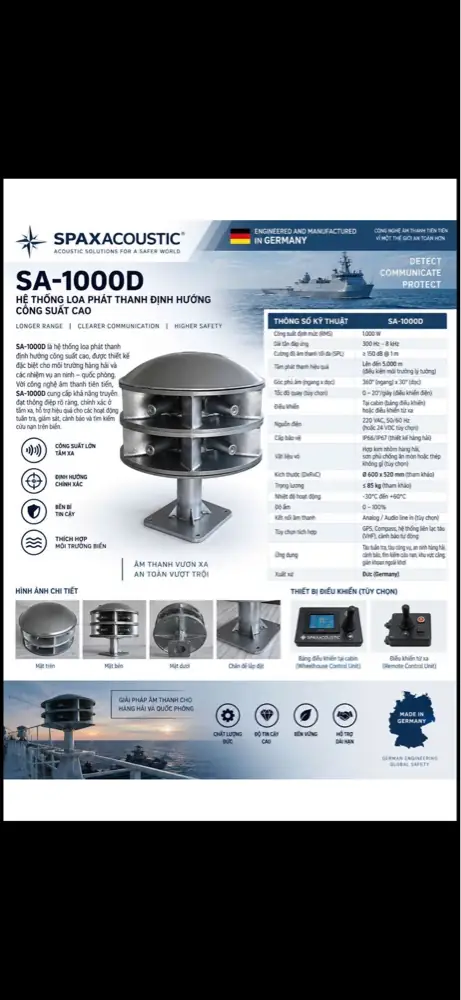

Supplied Product Sheet
SA-1000D brochure preview
SA-1000D Project Inquiry
Specify long-range marine communication and warning.
Send your required range, installation location, power supply, control method and vessel integration needs.
