Marine Searchlight / P36
P36
350W Xenon Searchlight for Marine Applications
Compact in footprint. Serious in reach. The P36 is engineered for long-range marine illumination, precise beam control and reliable operation in exposed offshore environments.
Peak intensity≥ 30,000,000 cd
Beam rangeApprox. 5,500 m @ 1 lux
Lamp power350W Xenon
ProtectionIP56
Product Overview
Compact power. Precise control. Serious reach.
The P36 combines a 350W short-arc xenon light source with electric pan, tilt and beam adjustment. It is suitable for patrol vessels, workboats, offshore platforms and other applications requiring reliable long-distance visibility.
High-intensity illuminationUp to 30 million candela peak intensity.
Adjustable beam1°–20° continuously adjustable beam angle.
Wide coverage350° pan and ±30° tilt movement.
Marine constructionMarine-grade aluminium alloy and stainless steel.
Electric controlRS485 / RS422 and NMEA 0183 interface options.
Operating rangeDesigned for -35°C to +55°C environments.
Technical Data
P36 specifications
| Model | P36 |
|---|---|
| Light source | Xenon 350W Short Arc |
| Lamp power | 350 W |
| Operating voltage | 115 / 230 VAC, 50/60 Hz |
| Peak light intensity | ≥ 30,000,000 cd |
| Luminous flux | 60,000 lm |
| Beam range (1 lux) | Approx. 5,500 m in clear weather |
| Beam angle | 1°–20°, continuously adjustable |
| Pan angle | 350° continuous |
| Tilt angle | ±30° |
| Pan speed | 15°/s fast, 3°/s slow |
| Tilt speed | 15°/s fast, 3°/s slow |
| Control system | Electric control; interfaces RS485 / RS422 and NMEA 0183 |
| Operating temperature | -35°C to +55°C |
| Ingress protection | IP56 |
| Material | Marine-grade aluminium alloy and stainless steel |
| Weight | Approx. 22 kg |
| Finish | White RAL 9016; other colours on request |
| Origin shown in supplied brochure | Germany |
Optional Configuration
Build the system around your mission.
Thermal cameraOptional thermal imaging module.
Low-light cameraOptional low-light visual module.
External lighting unitAuxiliary lighting configuration.
Wide-beam LED lightSupplementary broad-area lighting.
Electric control panelOptional operator control panel.
Vessel integrationIntegration with vessel control systems.

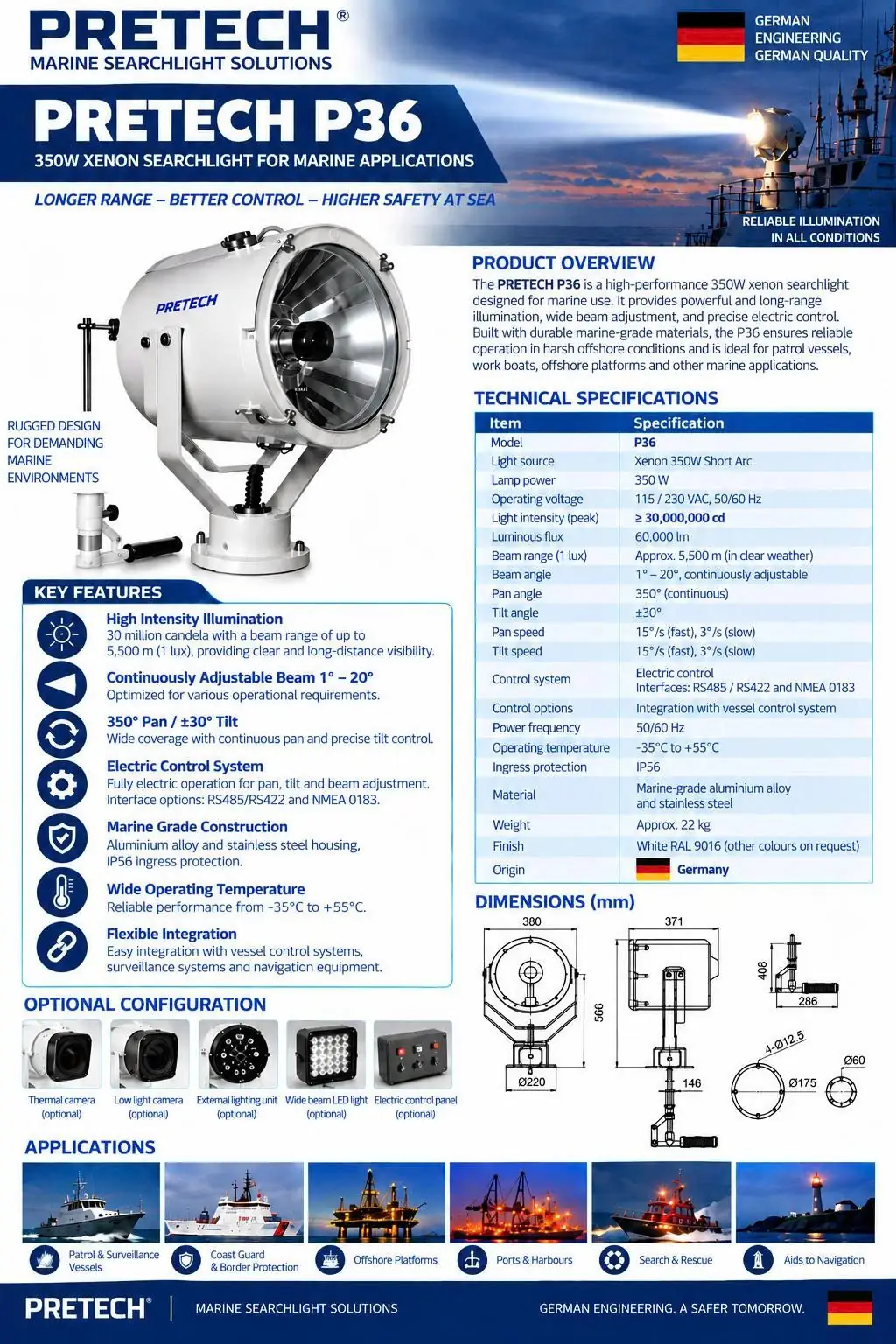

Supplied Product Sheet
P36 brochure preview
P36 Project Inquiry
Put the P36 into your vessel specification.
Send voltage, control requirements, quantity, vessel type and installation constraints for a quotation.
