Marine Searchlight / P1K-A
P1K-A
1000W Remote-Controlled Xenon Searchlight
A high-output 1000W Xenon system engineered for long-range observation, maritime security, rescue and offshore operations where visibility cannot be compromised.
Peak intensity≥ 80,000,000 cd
Beam range≥ 8,944 m @ 1 lux
Lamp power1000W Xenon
ProtectionIP56
Product Overview
Maximum reach with disciplined remote control.
The P1K-A is designed for operations that require a strong, concentrated beam over extended distance. Its adjustable beam, pan/tilt movement and remote controls support patrol, maritime security, search and rescue, port operations and navigation assistance.
Extreme intensityPeak intensity ≥80 million candela.
Long beam range≥8,944 m at 1 lux under clear conditions.
Flexible beam1°–20° continuously adjustable.
Fast movementPan speed up to 25°/s and tilt up to 14°/s.
Remote operationDesigned for precise control from the operator position.
Stainless constructionBuilt for demanding marine environments.
Technical Data
P1K-A specifications
| Model | P1K-A |
|---|---|
| Equipment type | Remote-controlled searchlight |
| Light source | Xenon lamp |
| Lamp power | 1000 W |
| Input voltage | DC 110V / AC 220V |
| Luminous flux | 60,000 lm |
| Peak light intensity | ≥ 80,000,000 cd |
| Beam range (1 lux) | ≥ 8,944 m |
| Beam angle | 1°–20°, continuously adjustable |
| Horizontal rotation | 360° continuous / 385° with limit |
| Tilt angle | ±35° |
| Pan speed | Up to 25°/s |
| Tilt speed | Up to 14°/s |
| Ingress protection | IP56 |
| Operating temperature | -35°C to +48°C |
| Housing material | Stainless steel |
| Weight | Approx. 97 kg |
| External cable diameter | Ø10–Ø12 mm |
| Origin shown in supplied brochure | Germany |
Complete System
Searchlight, controller and ballast.
Searchlight unitMain P1K-A searchlight assembly.
Remote controlOperator joystick/control unit shown in supplied literature.
Xenon ballastBallast unit supplied as part of the shown system.
ABS certificate reference23-2495841-PDA, as shown in the supplied brochure.
CCS certificate referenceZJ20P4039-2, as shown in the supplied brochure.
ApplicationsNavigation, search, maritime security, port operations, rescue and patrol.
Certificate status, scope and current validity should be verified against the original certificates before the website is published.

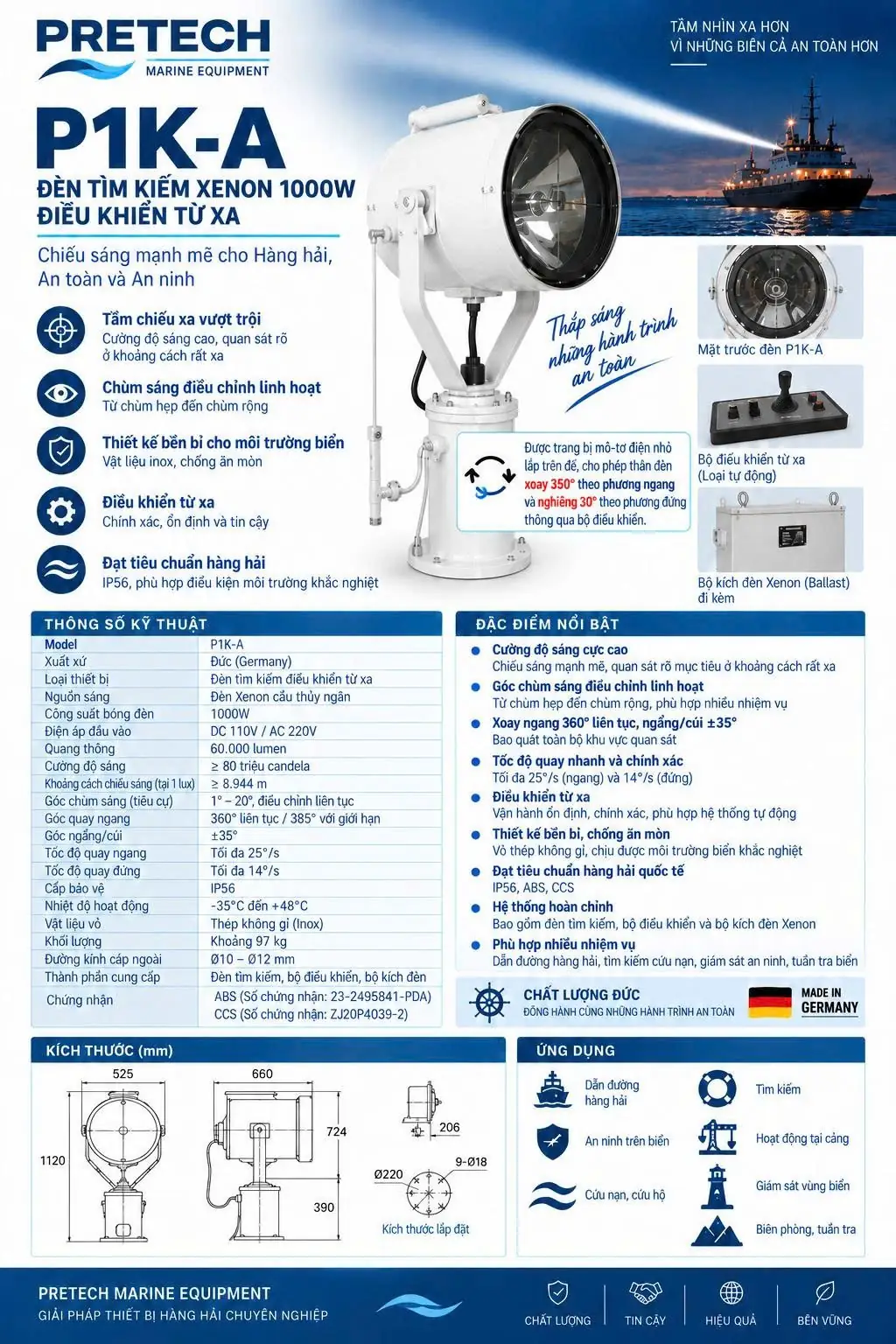

Supplied Product Sheet
P1K-A brochure preview
P1K-A Project Inquiry
Specify long-range illumination for the mission.
Send your vessel type, operating voltage, control method, quantity and installation requirements.
